OUR PRODUCTS
Sleeper Bolt
The Sleeper Bolt is designed to securely fasten the rail washer onto wooden sleepers, providing a durable and reliable connection.
Pre-Stress Unit
160/190/210
Pre- Stress Units are positioned on top of timber structures and then inflated with high-pressure water through a non-return valve. At pressures of both 20 tonnes and 50 tonnes, these units effectively secure the props in position while applying the necessary force.
Split Set
0.900mm , 1200mm, 1800mm, 2400mm,3000mm
Double Ridge Anchor Bolt
0.900mm , 1200mm, 1800mm, 2400mm,3000mm
The split set features a stainless steel double ridge configuration that has undergone rigorous testing, consistently demonstrating an impressive average carrying capacity of 187.5kN. dIts innovative design not only improves rock retention but also accommodates lateral rock displacement by allowing it to self-tighten. Unlike traditional bolts, the split set applies its frictional properties consistently along its entire length, avoiding single-point anchoring.
Pack Plates
612.5 x 925
Pack Plates are essential units designed to provide sturdy support. They consist of metal sheets that are welded together to create an inflatable steel pillow. An integrated valve unit facilitates easy installation by allowing the connection of a filler nozzle and maintaining the unit's internal pressure. For added safety and convenience, a pressure relief valve can be optionally included, enabling controlled pressure release post-installation. This feature allows the Jackpack to deflate gradually, ensuring that the load is eventually supported solely by the support unit initially pre-stressed during installation.
Pack Plates
750x750 , 612.5 x 630 , 612.5 x 925, 1100 x 1100
Pack Plates are essential units designed to provide sturdy support. They consist of metal sheets that are welded together to create an inflatable steel pillow. An integrated valve unit facilitates easy installation by allowing the connection of a filler nozzle and maintaining the unit's internal pressure. For added safety and convenience, a pressure relief valve can be optionally included, enabling controlled pressure release post-installation. This feature allows the Jackpack to deflate gradually, ensuring that the load is eventually supported solely by the support unit initially pre-stressed during installation.

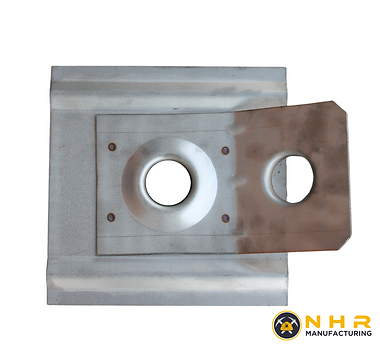

Dual purpose washer with One Ring
Our Split Set washers and utility hangers are diligently designed and crafted in-house to precisely meet the client's specifications, serving as essential components within the Split Set system.
Dual Purpose Washer with DBL Rings
Our Split Set washers and utility hangers are diligently designed and crafted in-house to precisely meet the client's specifications, serving as essential components within the Split Set system.
150x150x3mm x 250x250x2mm Washer
150x150x3mm x 250x250x2mm
Our Split Set washers and utility hangers are diligently designed and crafted in-house to precisely meet the client's specifications, serving as essential components within the Split Set system.
Dual Purpose Washer
Our Split Set washers and utility hangers are diligently designed and crafted in-house to precisely meet the client's specifications, serving as essential components within the Split Set system.

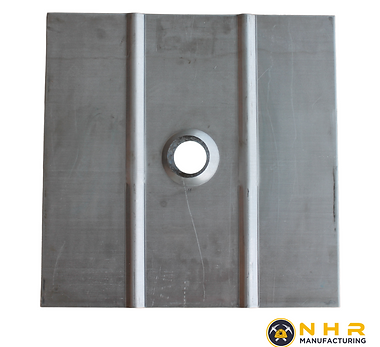

250x250x2mm Washer
250x250x2mm
Our Split Set washers and utility hangers are diligently designed and crafted in-house to precisely meet the client's specifications, serving as essential components within the Split Set system.
150x280x3mm Washer
150x280x3mm
Our Split Set washers and utility hangers are diligently designed and crafted in-house to precisely meet the client's specifications, serving as essential components within the Split Set system.
Rail Washer
Rail Washers are strategically positioned on top of the sleeper to provide vital support for the sleeper within the railway infrastructure.
Headboard with Pre-Stress Unit
The headboard serves as a crucial element for supporting an inflatable pot and is positioned horizontally at one end of an elongated mine prop. These props are installed vertically, providing support between the hanging wall and the footwall within a mining operation. To enhance its structural integrity, a steel reinforcement unit is securely attached, extending across the support surface of the chock assembly, thereby providing essential tensile reinforcement. Additionally, a grout unit is applied to the headboard and pressurized with grout to exert a compressive axial force on the mine prop, effectively stabilizing it between the hanging wall and the footwall.
200mm x 6mm Washer
200mm x 6mm Faceplate Washer
Our Split Set washers and utility hangers are diligently designed and crafted in-house to precisely meet the client's specifications, serving as essential components within the Split Set system.
